The Arcalux Health Risk Management System
When eliminating pathogens at the source and reducing HAI risks, there are four common lines of defense:

Filtration – Filter is deployed to eliminate hazardous agents at the source of exposure.

Pressure – Using differential pressure, directional airflow is created to isolate contaminants.

Purification – Using ultraviolet germicidal irradiation (UVGI).

Dilution – Deploy effective air change patterns in the room.


The Arcalux Health Risk Management System uses differential pressure and directional airflow to isolate contaminants, employing filtration and Ultraviolet Germicidal Irradiation (UVGI) while providing adequate per hour air changes on a local basis. This integrated room-level purification system eliminates pathogens at the source, consistent with the CDC's recommended hierarchies of controls.

This cost effective system is installed in the existing electrical infrastructure with no structural, HVAC or duct modifications. The patented and award winning SmartFixture is utilized as the platform for this standalone and easy to install delivery system. Disguised as an energy efficient light fixture, the system works unobtrusively to irradiate with optimal zonal ventilation, quietly re-circulating air at every corner of the room while removing 99% of viruses, fungi, and bacteria.

TCS is a master distributor for the Arcalux Health Risk Management System. This Standalone System provides protection from Hospital Acquired Infections that your hospital needs and your patients and staff deserve.

> HRM24 Series Spec Sheet Download
> Tri-Fold Brochure Download
> HRM24 Flyer Download

BACK TO TOP

Room Level Air Decontaminator (CEIC-RLAD)

Our Room Level Air Decontaminator "RLAD" is a portable air cleansing device that removes and kills airborne pathogens at room level. This air scrubber helps infection control professionals in healthcare facilities remedy problem areas or convert zones quickly, economically and effectively while complying with standards and guidelines as set forth by CDC, AIA, and HRSA. Utilizing state of the art filtration and UV Germicidal Irradiation technologies and superior designs, AirGuide's RLAD provides unparalleled air scrubbing performance. This room level air decontaminator is configured for recirculation of room air, or can be fitted with an optional, easily installed exhaust collar assembly. By ducting the collar and discharging the air into an adjacent space, the negative room pressure can be increased.

Easily moved to any space, RLAD plugs into any standard 110 vac wall outlet to immediately start scrubbing the air, creating an impromptu isolation environment to meet terrorism threats and potential biological, chemical, or nuclear contamination of patients or to keep contaminants down during facility construction.

Applications:

• Isolation rooms
• Pre and Post Preparation of Operating Rooms
• Emergency Rooms (ER)
• Triage
• Intensive Care Units (ICU)
• Waiting Rooms
• Treatment Rooms

Replacement Parts and Accessories:

• AMPF Anti-Microbial Pre-Filter
• UVCL UVC Germicidal Irradiation Lamp
• HEPA Filter (99.97% @ 0.3 micron)
• ULPA Filter (99.999% @ 0.12 micron)

BACK TO TOP

Fan Filter Air Diffuser (CEIC-FFAD)

Our Fan Filter Air Diffuser "FFAD" Series provides its own constant airflow independent of existing HVAC systems, yielding unequalled flexibility for design and construction in all clean room environments. A fan-powered HEPA or ULPA filtered diffuser, FFAD combines proven vertical air mass technology with the latest ECM fan motor capabilities to produce a non-aspirating, low velocity, uniformly distributed downward moving piston of filtered air. The FFAD can be incorporated into a laminar flow system.

Our FFAD automatically compensates for changes in filter load and static pressure and the all-welded stainless steel plenum is built to meet the latest pressure testing standards. Available with either HEPA or ULPA filters, the FFAD is computer-controlled with a variable speed ECM motor for higher CFM output.

Designed for both lay-in t-bar ceiling systems and surface mount applications, the FFAD can also be incorporated into an existing HVAC system with a round duct inlet for simple duct connection (rectangular and oval duct connection upgrades available). The clear anodized extruded aluminum filter frame comes with a test port to measure filter pressure drop or to perform leakage (scan) tests. The removable faceplate provides ease of cleaning with a cleanable, expanded aluminum pre-filter. The computer-controlled, variable speed ECM motor with an internal micro-computer, delivers low energy consumption, high performance and long motor life.

Applications:

• Operating Room

• Used for clean room applications such as research, animal or pharmaceutical labs, as well as food processing plants, microchip plants, and other protective environment rooms

Replacement Parts and Accessories:

• HEPA Filter (99.97% @ 0.3 micron)
• ULPA Filter (99.999% @ 0.12 micron)

BACK TO TOP

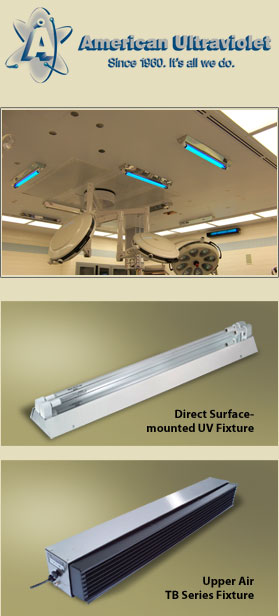

Upper Air TB/RAM/CM Series UVC Fixtures
The TB, Ram and CM Upper Air Series in-room air treatment fixtures are designed specifically for continuous upper air UVC irradiation. These trusted fixtures have been successfully used to control the spread of airborne microorganisms and bio-aerosols in hospitals, prisons, clinics and government buildings since 1960. The fixtures incorporate adjustable louvers that safely direct UVC energy above contact level (7+ feet) with occupants, ensuring that the TB/RAM/CM fixtures disinfect the air in occupied rooms.

TB Upper Air Series
The TB Upper Air Series is available in three sizes (providing 100, 200 and 300 square feet of coverage), and operate on 120, 230 or 277 VAC at 50 or 60 Hz, allowing installation flexibility to accommodate virtually any room or building layout. Multiple fixtures may be used to cover areas larger than 300 square feet. TB Upper Air Series fixtures are designed for easy access lamp changes and the lamps are rated for two-year continuous operational life with approximately a 20% drop in UVC output at the end of lamp life.

RAM Upper Air Series – Tamper Proof
The RAM Upper Air Series features dual lamp configurations with two fan motors pulling the air through two MERV 7 particle filters with a stainless steel housing that has a tamper proof option. This fixture is available with two different high-output lamp sizes (14" or 36"), and operates on either 120 or 230 VAC, allowing installation flexibility to accommodate virtually any room or building layout. RAM fixtures are also designed for easy access lamp changes and the lamps are rated for two-year continuous operational life with approximately a 20% drop in UVC output at the end of lamp life.

CM 15 Upper Air Corner Mount Series
The CM 15 Upper Air units are designed to mount in corners of rooms where TB Series units are not desirable. A single CM 15 fixture can cover 75 – 100 square feet, depending on the application. The CM 15 is easily accessed for lamp replacement and the lamps are rated for 9,000 hours effective lamp life.

Benefits:

• Improves Indoor Air Quality (IAQ) by reducing bacteria, viruses and fungi
• Reduces the risk of cold, flu, allergies and other illnesses

• Two year (17,000 hour) guarantee on lamps with only a 20% decrease in output over the two years (9,000 hours on CM 15 lamps)

• Ten year, non-prorated warranty on the ballast

• Continuously cleans the upper air in rooms, reducing airborne and/or bio-aerosol transmission of bacteria, viruses and fungi

• Produces no ozone or other secondary contaminants

Applications:

• The TB, RAM and CM Series fixtures are used for continuous upper air UVC irradiation in occupied rooms

Replacement Parts and Accessories:

• SBL Replacement UVC Lamp for TB and RAM fixtures
• GML Replacement UVC Lamp for CM fixture

BACK TO TOP

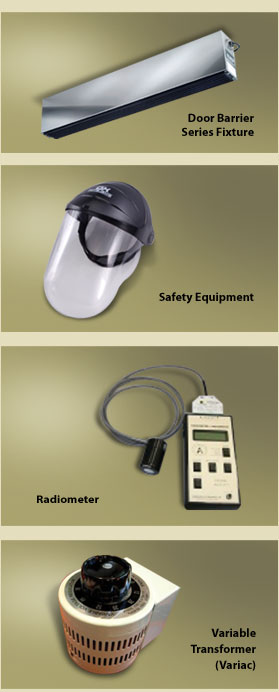

Door Barrier (DB) Series UVC Fixtures

The DB Series confines UVC energy to a narrow beam, providing coverage within an average three-foot doorway. Wider openings can be equipped with two or more units mounted in tandem above the opening. Beam width and depth are further controlled with deep louvers that can create a powerful, concentrated curtain of germicidal UV energy, resulting in maximum UVC output and increased personnel safety. Beam width and depth can be enlarged to control lamp/floor/distance ratio and create a balanced germicidal-fungicidal barrier from fixture to floor. Lamps and louvers are easily removed for maintenance and lamp replacement does not require fixture disassembly or removal of the fixture from its mounting.

Door Barrier fixtures create a curtain of germicidal ultraviolet rays that effectively control the airborne transmission of microorganisms between areas.

The DB Series is available in 24 and 36 inch lengths with four voltage options (120, 208, 230 or 277 VAC) providing installation flexibility to accommodate virtually any system.

Benefits:

• Designed to mount over doorways
• Deep louvers direct UVC energy straight down
• Provides protection in critical areas
• Multiple units can be used on top and sides of doorways for extremely critical areas
• This is a component of the UVC Operating Room Equipment Package
• 10 year, non-prorated warranty on the ballast

Applications:

• Operating rooms, laboratories, nursing homes, nursery, pharmaceutical manufacturing, delivery rooms, sterile packaging and all critical areas

Replacement Parts and Accessories:

• GML Replacement UVC Lamp
• TXG Replacement Ballast

BACK TO TOP

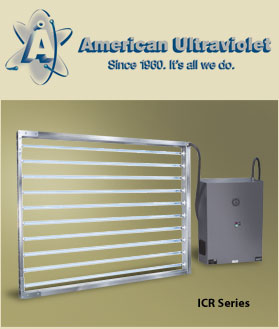

In-Duct Infection Control Rack ICR Series UVC Fixtures

The high-output ICR Series fixtures are designed specifically for HVAC airstream disinfection applications. They are ideal for large air handling systems in commercial, industrial, healthcare and institutional buildings. These ready to install framed structures can be easily mounted in duct systems and on coils to provide the desired airstream disinfection to protect personnel from unwanted bacteria, viruses or fungi traveling in the airstream. Frames can be mounted side by side or stacked vertically to cover the entire plenum or coil.

ICR Series fixtures not only decontaminate air, but they also use UVC cleansing energy to remove biofilms from cooling coils and drain pans. The ICR Series can be mounted in minutes to plenum walls, or to frame assemblies that span supply ducts and/or cooling coils. These fixtures are offered in various lamp configurations and come standard in five different widths (18", 24", 36", 48" and 60") with four voltage options (120, 208, 230 or 277 VAC) providing installation flexibility to accommodate virtually any system.

Benefits:

• Each system is custom sized to individual duct and desired microbial reduction rate at no additional charge with reduction rates up to 99.9% (dependent upon microbe)

• Reduces bacteria, viruses and fungi with one pass through the ICR
• Installs in minutes with already assembled frame structure that easily attaches to plenum wall

• Installation down-stream offers removal or prevention of biofilm build-up on cooling coil and restores coil to optimum heat transfer properties

• High-output "Green" lamps contain <8 mg of Mercury

• Two year (17,000 hour) guarantee on lamps with only a 20% decrease in output over the two years

• Ten year, non-prorated warranty on the ballast
• No maintenance required other than to change lamps every two years

• Each assembly includes fully wired and enclosed power supply, electronic ballast(s), frame assembly, lamp holders and high output lamps

• "Moisture-Proof" construction incorporates a moisture-proof wire lead connector assembly
• Produces no ozone or other secondary contaminants

Applications:

• HVAC airstream disinfection and elimination of biofilms

Replacement Parts and Accessories:

• All ICR systems are custom made to the specific application
• Replacement lamps are dependent upon custom factory design

BACK TO TOP

In-Duct DC Series UVC Fixtures

DC Series UVC fixtures can be mounted in various configurations for optimum pass-by air decontamination and/or to irradiate cooling coils and drain pans. Lamps and electronics can be accessed from outside the duct or plenum. "Green" lamps extend inside to span supply ducts and/or cooling coils.

DC Series fixtures are offered in two and four-lamp configurations with rigid conduit lamp supports that can be mounted singly, in built-up banks, or in parallel configurations in a variety of locations, including coils, drain pans, ductwork, mixed air plenums and exhaust systems.

The DC Series is available in five lengths (14", 16", 24", 33" and 45") with four voltage options (120, 208, 230 or 277 VAC) providing installation flexibility to accommodate virtually any system.

Benefits:

• Improves Indoor Air Quality (IAQ) by reducing bacteria, viruses and mold that either grow or pass through the air handling systems

• Reduces the risk of cold, flu, allergies and other illnesses associated with room unit HVAC systems

• "Green" lamps contain <8mg of mercury

• Two year (17,000 hour) guarantee on lamps with only a 20% decrease in output over the two years

• Ten year, non-prorated warranty on the ballast
• Reduces HVAC energy costs by restoring heat transfer and net cooling capacity

• Continuously cleans coils, drain pans, plenums and ducts, eliminating costly cleaning programs and the use of harmful chemicals and disinfectants

• Produces no ozone or other secondary contaminants

Applications:

• External installation in medium to large air handling systems in commercial, industrial, healthcare and institutional buildings

Replacement Parts and Accessories:

• SBL Replacement UVC Lamp
• TXG Replacement Ballast

BACK TO TOP

In-Duct NC (NEMA 4X) Series High-Output UVC Fixture

The high-output NC (NEMA 4X) Series UVC fixtures feature the externally mounted design of the American Ultraviolet DC Series, however they include a weather-resistant NEMA 4X housing that makes them ideal for outdoor HVAC units. They are available in one-lamp and two-lamp configurations and can be installed vertically or horizontally. Only the lamp and input power wiring penetrate the HVAC unit, while the ballast and lamp harness remain external (housed inside the NEMA 4X enclosure).

The NC Series delivers the best and longest lasting UVC performance available. It has been independently tested to deliver greater output than any other ultraviolet device under HVAC operating conditions (45 degrees F at 400 fpm air velocity), and the increased output of our lamps provide the most reliable germicidal performance and the longest service life.

The NC Series is available in five lengths (14", 16", 24", 33" and 45") with four voltage options (120, 208, 230 or 277 VAC) providing installation flexibility to accommodate virtually any system.

Benefits:

• Improves Indoor Air Quality (IAQ) by reducing bacteria, viruses and mold that either grow or pass through the packaged equipment.

• Reduces the risk of cold, flu, allergies and other illnesses associated with room unit HVAC systems

• High-output, "Green" lamps contain <8mg of mercury

• Two year (17,000 hour) guarantee on lamps with only a 20% decrease in output over the two years

• Ten year, non-prorated warranty on the ballast
• Reduces HVAC energy costs by restoring heat transfer and net cooling capacity

• Continuously cleans coils and drain pans, eliminating costly cleaning programs and the use of harmful chemicals and disinfectants

• Produces no ozone or other secondary contaminants
• Quick and easy installation

Applications:

• Installed on the exterior of rooftop A/C units or ductwork and enable easy access to difficult to reach outdoor locations

Replacement Parts and Accessories:

• SBL Replacement UVC Lamp
• TXG Replacement Ballast

BACK TO TOP

On-Coil CC Series – HVAC Air Cleaner

The high-output CC Series HVAC UVC light fixtures are designed specifically as an HVAC air cleaner system. These versatile units can be mounted in various configurations for optimum pass-by UV air sterilization and/or to irradiate cooling coils and drain pans. These individual HVAC UVC air purifiers can be mounted to plenum walls or multiple fixtures can mount to frame assemblies that span supply ducts or cooling coils.

CC Series fixtures are offered in both one and two-lamp configurations with "moisture proof" construction. They may be mounted individually, in built up banks, or in parallel rack-system configurations in a variety of locations, including coils, drain pans, ductwork, mixed air plenums and exhaust systems.

CC Series fixtures are designed for "moisture proof" applications with UVC lamps that incorporate a built-in outer quartz sleeve with a protective boot on the power end for sealing purposes. Power is brought to the lamp through a waterproof connector that is securely sealed to the lamp with coated lead wires. The quartz sleeve creates an environment for the lamp to operate at a more optimum operating temperature and the UVC output is less effected by the ambient air temperature.

The CC Series is available in five lengths (18", 24", 36", 48" and 60") with four voltage options (120, 208, 230 or 277 VAC) providing installation flexibility to accommodate virtually any system.

Benefits:

• Improves Indoor Air Quality (IAQ) by reducing bacteria, viruses and mold that either grow or pass through the air handling systems

• Reduces the risk of cold, flu, allergies and other illnesses associated with air handling systems
• "Green" lamps contain <8mg of mercury

• Two year (17,000 hour) guarantee on lamps with only a 20% decrease in output over the two years

• Ten year, non-prorated warranty on the ballast
• Reduces HVAC energy costs by restoring heat transfer and net cooling capacity

• Continuously cleans coils, drain pans, plenums and ducts, eliminating costly cleaning programs and the use of harmful chemicals and disinfectants

• Produces no ozone or other secondary contaminants

• Plug-in connections mean no field wiring required to connect fixture to fixture when building banks of rack systems (except for 277 volt applications)

Applications:

• Internal installation in medium to large air handling systems in commercial, industrial, healthcare and institutional buildings

Replacement Parts and Accessories:

• GCL Replacement UVC Lamp
• TXG Replacement Ballast

BACK TO TOP

On-Coil PEK (Packaged Equipment Kit) Series UVC Fixtures

High-output PEK Series UVC fixtures feature lamps that illuminate cooling units with high-output (800mA) UVC energy that eliminates surface contaminants (mold, bacteria and other microbial biofilms) and reduce infectious airborne microbial contaminants. The PEK Series uses practical and effective UVC technology to overcome the Indoor Air Quality (IAQ) challenge other small in-room packaged equipment hasn't been able to solve, because they are often equipped with low-efficiency filters that cannot effectively capture infectious disease contaminants or mold. In addition, because of space and airflow limitations, many of these other units cannot be retrofitted with high-efficiency filtration.

Independent tests show American Ultraviolet fixtures deliver greater output than any other ultraviolet devices under HVAC operating conditions (45 degrees F at 400 fpm air velocity), and the increased output of our lamps provide the most reliable germicidal performance and the longest service life.

PEK Series fixtures are designed for "moisture proof" applications with UVC lamps that incorporate a built-in outer quartz sleeve with a protective boot on the power end for sealing purposes. Power is brought to the lamp through a waterproof connector that is securely sealed to the lamp with coated lead wires. The quartz sleeve creates an environment for the lamp to operate at a more optimum operating temperature and the UVC output is less effected by the ambient air temperature.

The PEK Series is available in five lengths (18", 24", 36", 48" and 60") with four voltage options (120, 208, 230 or 277 VAC) providing installation flexibility to accommodate virtually any system.

Benefits:

• Improves Indoor Air Quality (IAQ) by reducing bacteria, viruses and mold that either grow or pass through the packaged equipment.

• Reduces the risk of cold, flu, allergies and other illnesses associated with room unit HVAC systems

• High-output, "Green" lamps contain <8mg of mercury

• Two year (17,000 hour) guarantee on lamps with only a 20% decrease in output over the two years

• Ten year, non-prorated warranty on the ballast
• Watertight connections for lamp and wiring
• Reduces HVAC energy costs by restoring heat transfer and net cooling capacity

• Continuously cleans coils and drain pans, eliminating costly cleaning programs and the use of harmful chemicals and disinfectants

• Produces no ozone or other secondary contaminants
• Quick and easy snap-in installation
• Optional GTLK units are the same as the PEK fixtures with shatterproof UVC lamps

Applications:

• Ideal for use in packaged terminal air conditioners, classroom unit ventilators, fan coils, packaged and split systems and other applications with limited space obstacles

Replacement Parts and Accessories:

• GCL Replacement UVC Lamp
• GTL Optional Shatterproof UVC Lamp
• TXG Replacement Ballast

BACK TO TOP

ARTZ Mobile Room UVC Germicidal Solution
for Healthcare

The ARTZ (Automatically Reliably Targeting Zero) has been designed with the goal of targeting zero infections. The ARTZ is more efficient and effective than any other comparable mobile room UV sterilization device in the marketplace and it is less expensive. Our recommendation is that the ARTZ be used as the final step during terminal cleaning of patient rooms or surgical suites as well as any other areas of your facility where harmful pathogens may be present.

Remote Controlled with Downloadable Data

• The wireless remote controller provides user safety
• Records session log-in, date of service, run time and settings
• Measures productivity and time management
• Wirelessly downloads data to a computer
• Automatic document control helps reduce or eliminate human error during data collection
• 10 year, non-prorated warranty on the ballast

Safe

• 360 degree motion sensors automatically shut the ARTZ off if the room is entered during treatment

Effective

• Delivers a balanced and uniform UVC flux to surfaces and air, automatically delivering the dose needed to eliminate pathogens and multidrug resistant organisms which include:

   Methicillin resistant Staphylococcus aureus (MRSA)
   Clostridium difficile
   Acinetobacter baumannii
   Vancomycin resistant enterococcus (VRE)
   Extended Spectrum Beta Lactamase Producers (ESBL)
   Influenza virus (Avian, Influenza A)
   Numerous other bacteria, virus and fungi

Fast

• Sets up quickly with pre-programmed remote control
• Disinfects high touch surfaces from pathogens in minutes

User Friendly

• No significant special training is required
• Easily operated by anyone after a preliminary training
• No special room preparation is required when strategically placed inside the treatment room

Green Technology

• Produces no ozone or other secondary contaminants
• No special lamp recycling is required
• No additional chemicals are required
• No waste is generated
• 24 – 45 inch UVC Lamps are rated for 12,000 hours which exceeds all other mobile room UVC devices

Replacement Parts and Accessories:

• GML Replacement UVC Lamp
• TXG Replacement Ballast

BACK TO TOP

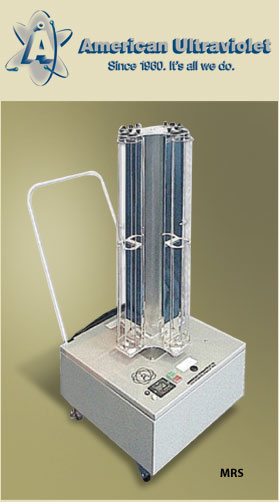

Mobile Room Sterilizer (MRS)

The MRS Mobile Room Sterilizer is very user-friendly and designed specifically for direct, prolonged UVC treatment inside rooms. Simply place the MRS in the room that requires treatment, set the timer and walk away. The MRS will sterilize all air and surfaces within its reach until the pre-set time has expired. This portable unit can be easily moved between multiple rooms that require UVC treatment. This is the most affordable UVC room sterilizer available.

The MRS is offered with 8 – 36 inch UVC lamps with guard rails and reflectors to maximize safety and effectiveness. The unit uses a 24-hour timer to allow the user to set the desired exposure time with a 2-minute "on-delay" which allows personnel to safely clear the room prior to the unit being activated. (An optional motion sensor shut off is available for added safety). All surfaces and air within direct line of sight will be treated within a 20' X 20' area with a single treatment. Areas larger than 20' X 20' can be treated with multiple treatments.

Benefits:

• Available in 120/60Hz and 220/50Hz configurations the MRS is suitable for use worldwide
• Portability on wheels allow use in multiple rooms without permanent fixture installation
• Produces no ozone or other secondary contaminants
• Sterilizes airborne and surface DNA-based contaminants
• 12,000 hour lamps with only a 20% decrease in output over the lamp life
• 10 year, non-prorated warranty on the ballast
• 24-hour programmable timer to set desired exposure time
• 2-minute "on-delay" timer enables personnel to safely clear the area prior to treatment
• Guard rails prevent accidental lamp breakage
• Stainless steel housing
• Spectrally polished reflectors maximize UVC lamp output

Replacement Parts and Accessories:

• GML Replacement UVC Lamp
• TXG Replacement Ballast
• Optional motion sensor shut off

BACK TO TOP

"The UVC Operating Room Equipment Package"

Ultraviolet germicidal packages from American Ultraviolet reduce the threat of contamination of the operative wound and post-operative deep wound infections that can occur during surgical procedures, particularly when refined-clean wounds are involved.

Studies as far back as 1937 (Duke University, Durham, North Carolina), and as recent as 2007 (Center for Hip and Knee Surgery, St. Francis Hospital-Mooresville, Mooresville, Indiana) report the effectiveness of ultraviolet light in reducing overall infection rates. In the Duke study, during the first five years of use, overall infection rates on clean cases dropped from 10% to 0.24%, on the orthopedic service, it dropped from 16.5% to 0.75%. For the next 26 years, the overall infection rate was 0.34%.

The St. Francis study (July 1986 to July 2005) shows the infection rate in the operating room decreased significantly, from 1.77% to 0.57%, in association with the use of ultraviolet lighting, even with the elimination of laminar airflow.

For more than 70 years, UVC has been used to reduce or eliminate DNA-based contaminants and provide operating room personnel and patients with a healthier environment. American Ultraviolet has manufactured UVC Germicidal Fixtures since 1960. More than 40,000 of their products have been safely operating in hospitals, laboratories, clean rooms, doctor's offices, commercial buildings, food processing facilities and residences throughout the world. American Ultraviolet is the clear leader in UV technology.

The typical Operating Room Package deploys a complete arsenal of UVC products to entirely protect the Operating Room Theatre. By combining the following products American Ultraviolet delivers the protection from infection your patients and staff deserve.

A typical Operating Room Package will include the following:

8 – Two Lamp Direct Surface-mount Fixtures (SM-36-200)
2 – Upper Air TB Series Fixtures (TB-36-W)
1 – Door Barrier Series Fixture (DB-36) this quantity may vary based on number and size of entry doors
1 – Radiometer
1 – Variable Transformer (Variac)
1 – On-site training session provided by American Ultraviolet
Safety Equipment for Personnel as required

Direct Surface-mounted UVC Fixtures

• Ceiling-mounted and evenly spaced for maximum coverage and to eliminate shadowing
• Superior to mobile devices
• Lower intensity used during surgery, maximum intensity used in between procedures
• Stainless steel housing ensures dependable life
• Low maintenance

Upper Air TB Series Fixture

• Wall mounted 7 – 8 feet above floor
• Usually installed on opposing walls to ensure room coverage
• Full-power used at all times
• Adjustable louvers safely direct UVC energy above contact level (7+ feet)

Door Barrier Series Fixture

• Mounted above all operating room access doors
• Provides a "curtain" of UV protection
• Confines UVC rays to a narrow beam
• Full-power used at all times
• DNA-based microorganisms cannot enter or leave the operating room theatre

Safety Equipment

• UVC safety equipment ensures safety of all operating room personnel
• Meets appropriate ANSI, OSHA and NIOSHA Standards for eye and face protection

Radiometer

• Measures UVC energy at surgical sight

Variable Transformer (Variac)

• Wired to direct, surface-mounted fixtures
• Acts as a "dimmer" to dial down lamp intensity during procedures

Training

• On-site training of all personnel is always recommended for the best safety precaution

BACK TO TOP

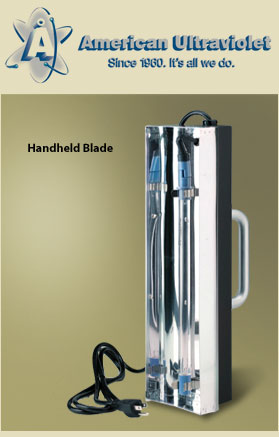

Handheld Blade

The UVC Blade is a handheld, portable UVC disinfection device designed to deactivate bacteria, viruses and fungi in spaces where traditional hard-mounted UVC fixtures are inconvenient to be mounted and where other larger portable devices have limited access.

In healthcare environments the UVC Blade is ideal for the disinfection of:

• Hard to clean/reach surfaces such as remote controls, keyboards, equipment with accessories and inaccessible areas that require frequent wipe downs
• Bathroom handrails, toilet surfaces, sinks and others
• Cell phones, chairs, door knobs, bed rails, tray tables, etc.
• Can also be used effectively for mold remediation

The UVC Blade is fully portable and plugs in to any standard 120V outlet. It comes equipped with a shatterproof UVC high-output lamp, an oversized handle designed to maximize grip comfort, an on/off switch, a 6 foot power cord and UVC safety glasses.

Benefits:

• Quickly disinfects common bacteria, viruses and fungi
• Lightweight aluminum housing weighs less than 5 pounds
• Easy to use hand held device
• 12,000 hour rated UVC shatterproof lamp
• 10 year, non-prorated warranty on the ballast
• Quick and easy lamp change does not require tools
• Polished aluminum reflector maximizes UVC intensity
• On/off safety switch
• 6 foot 3-prong power cord is standard

Replacement Parts and Accessories:

• SBL350T Replacement UVC Lamp

BACK TO TOP
